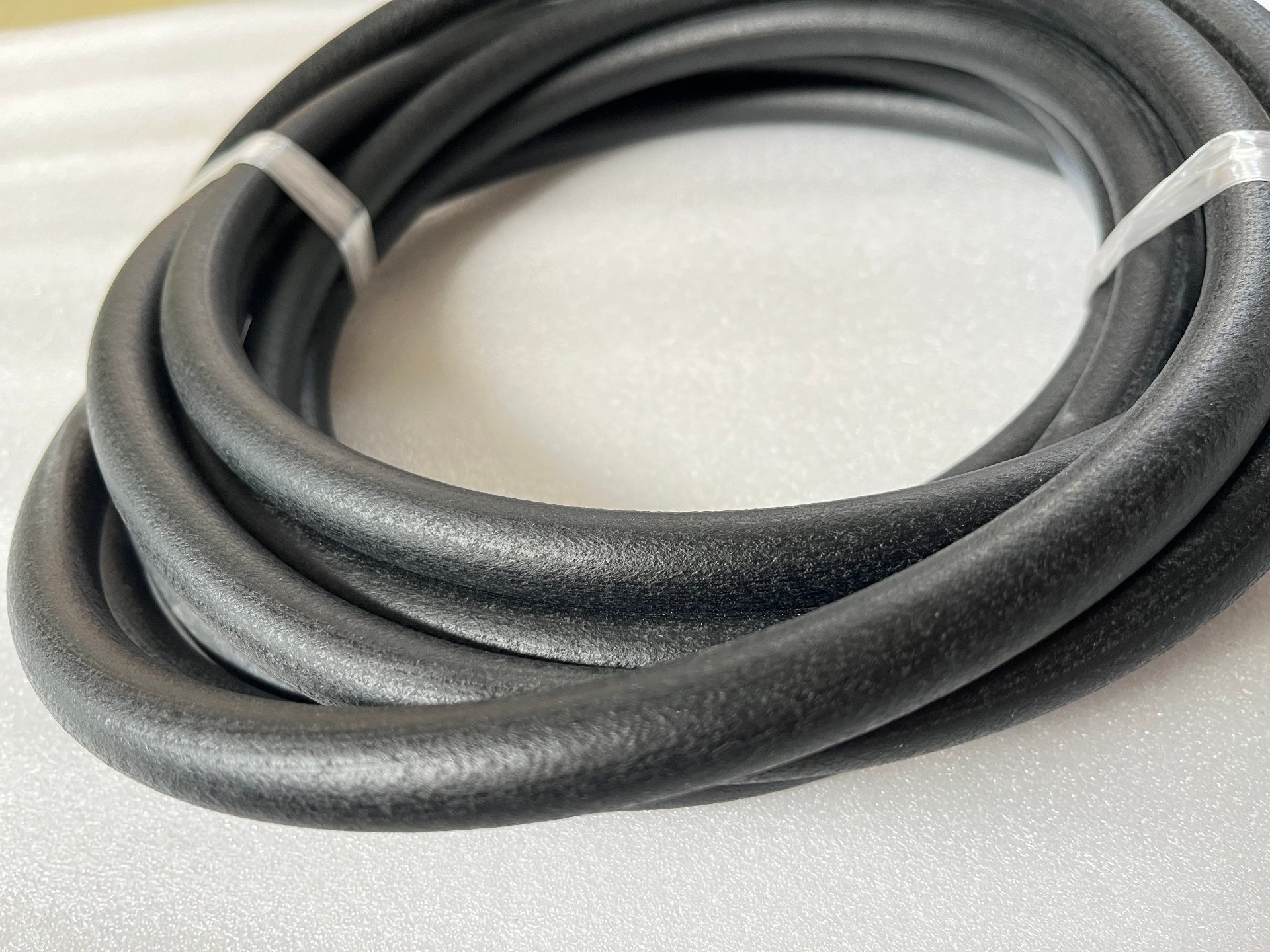

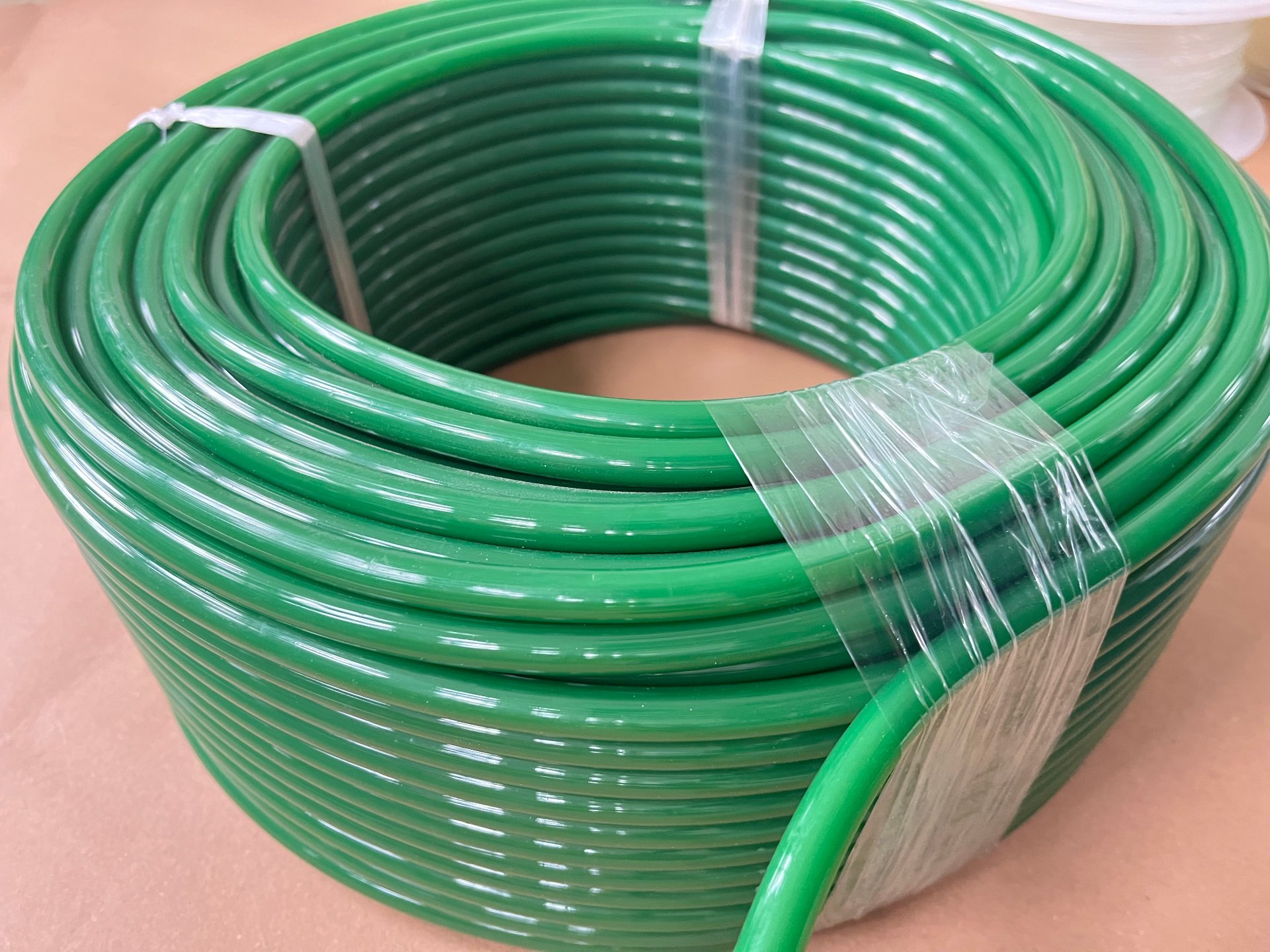

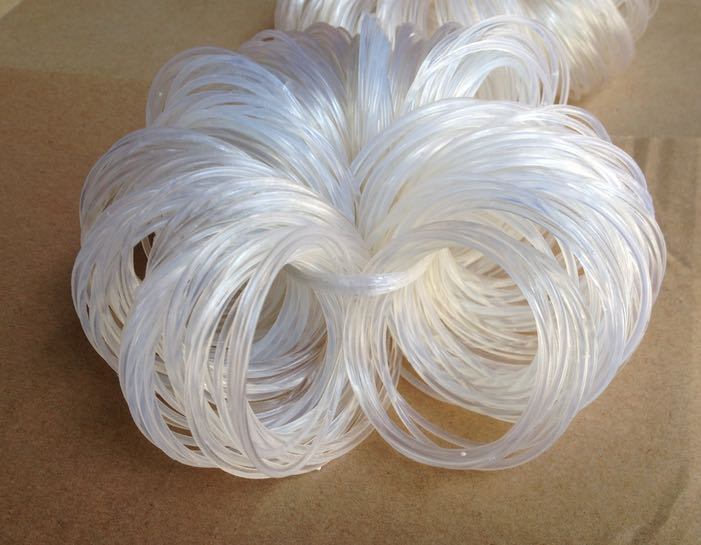

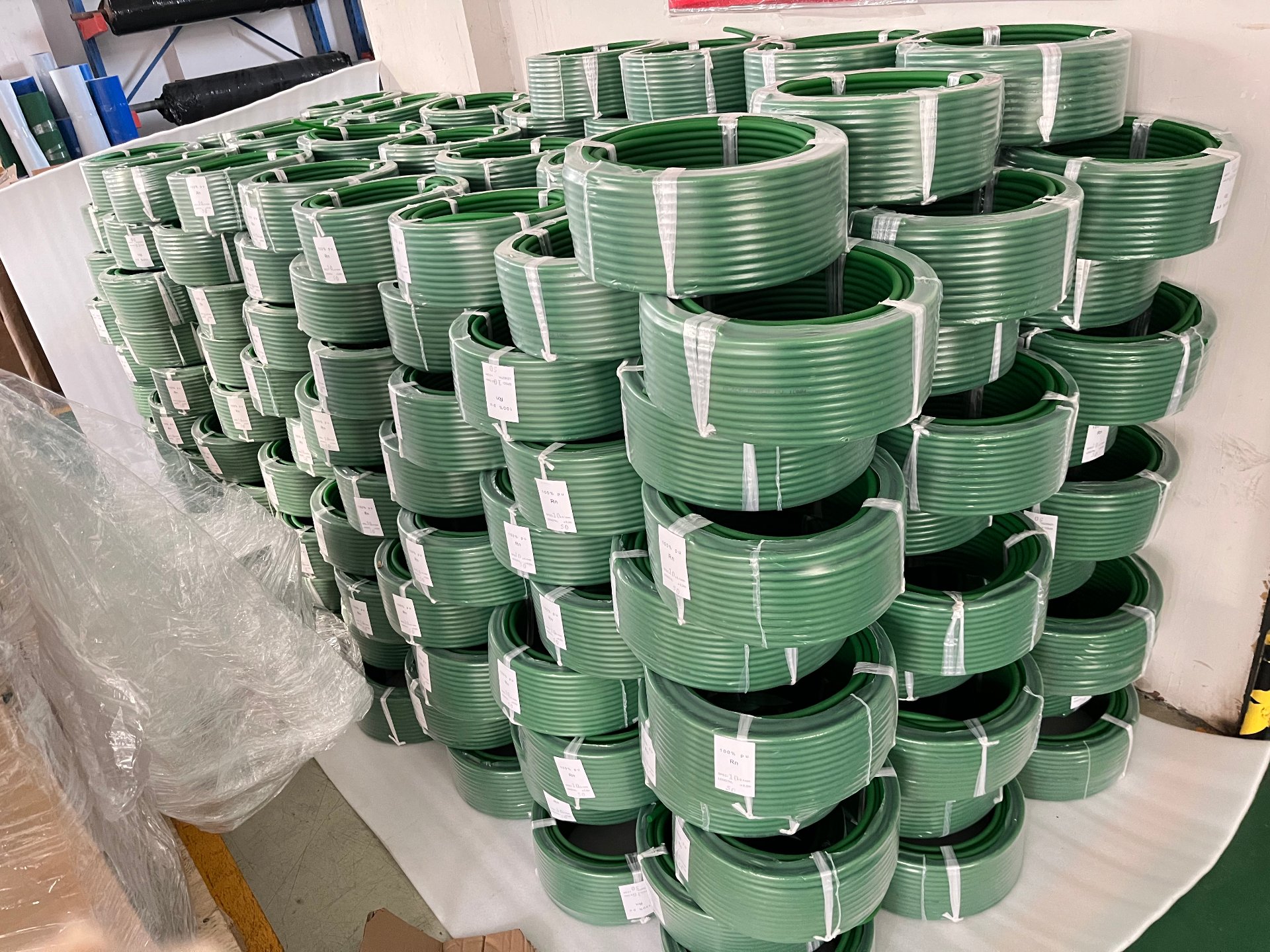

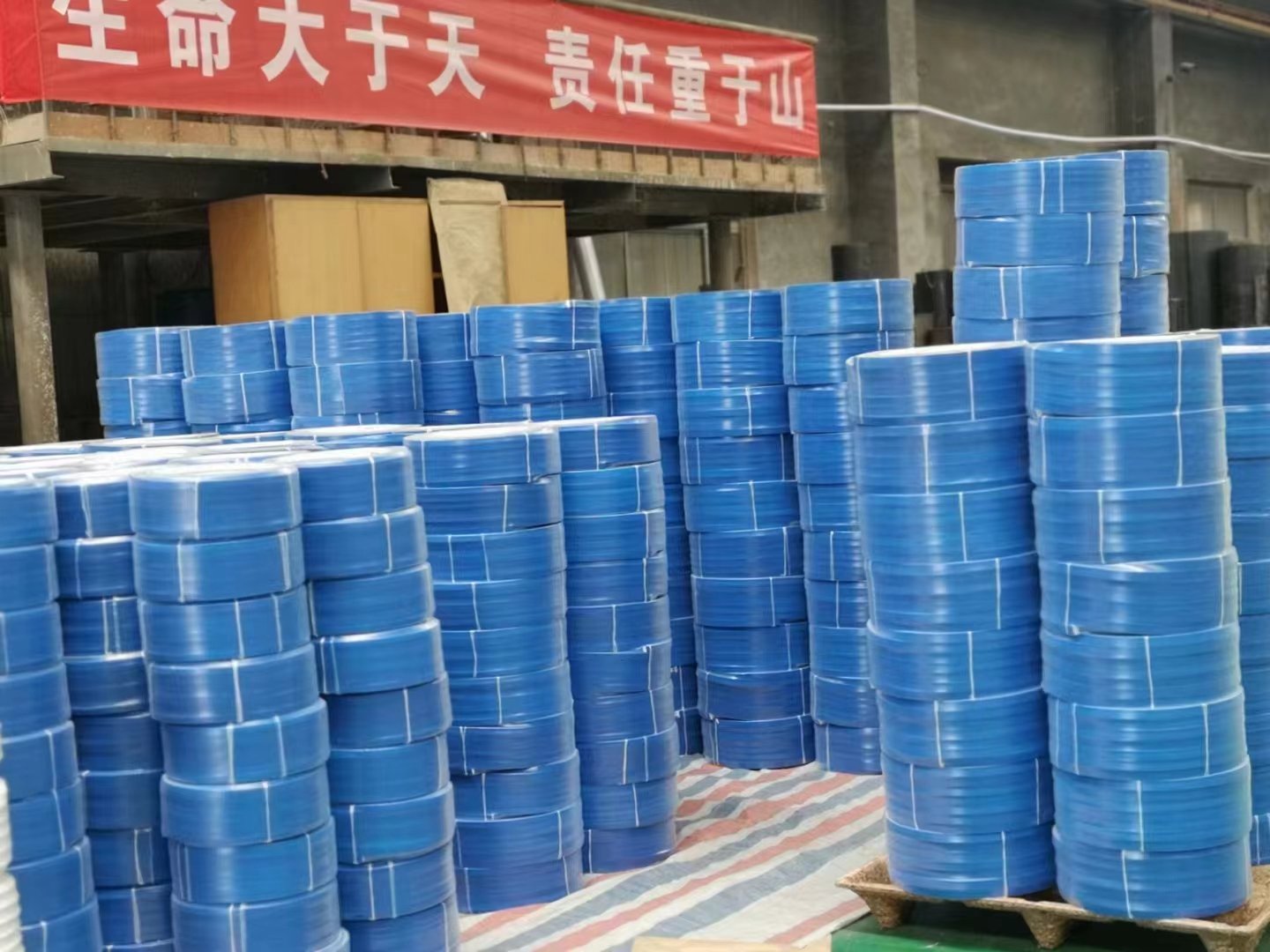

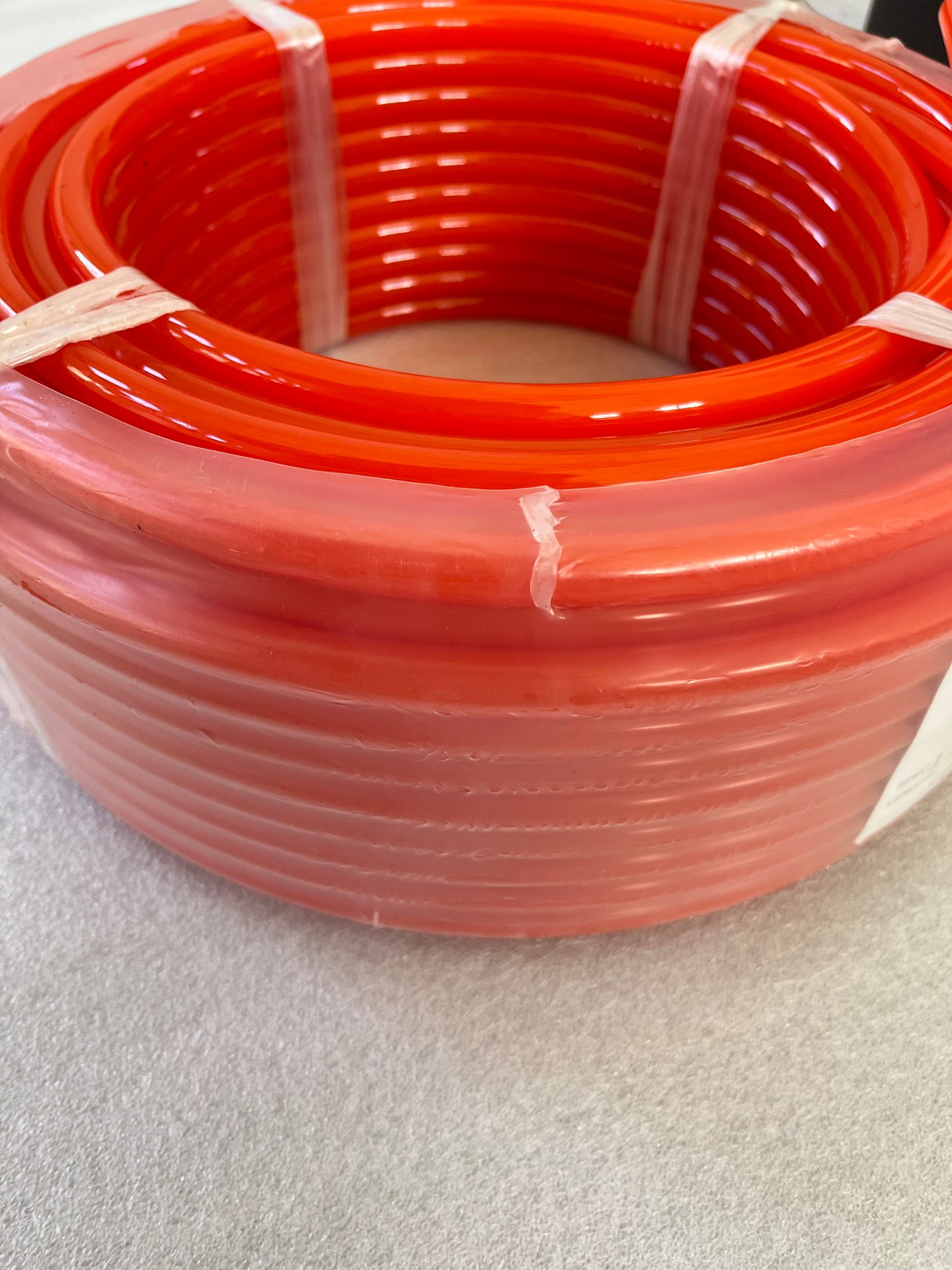

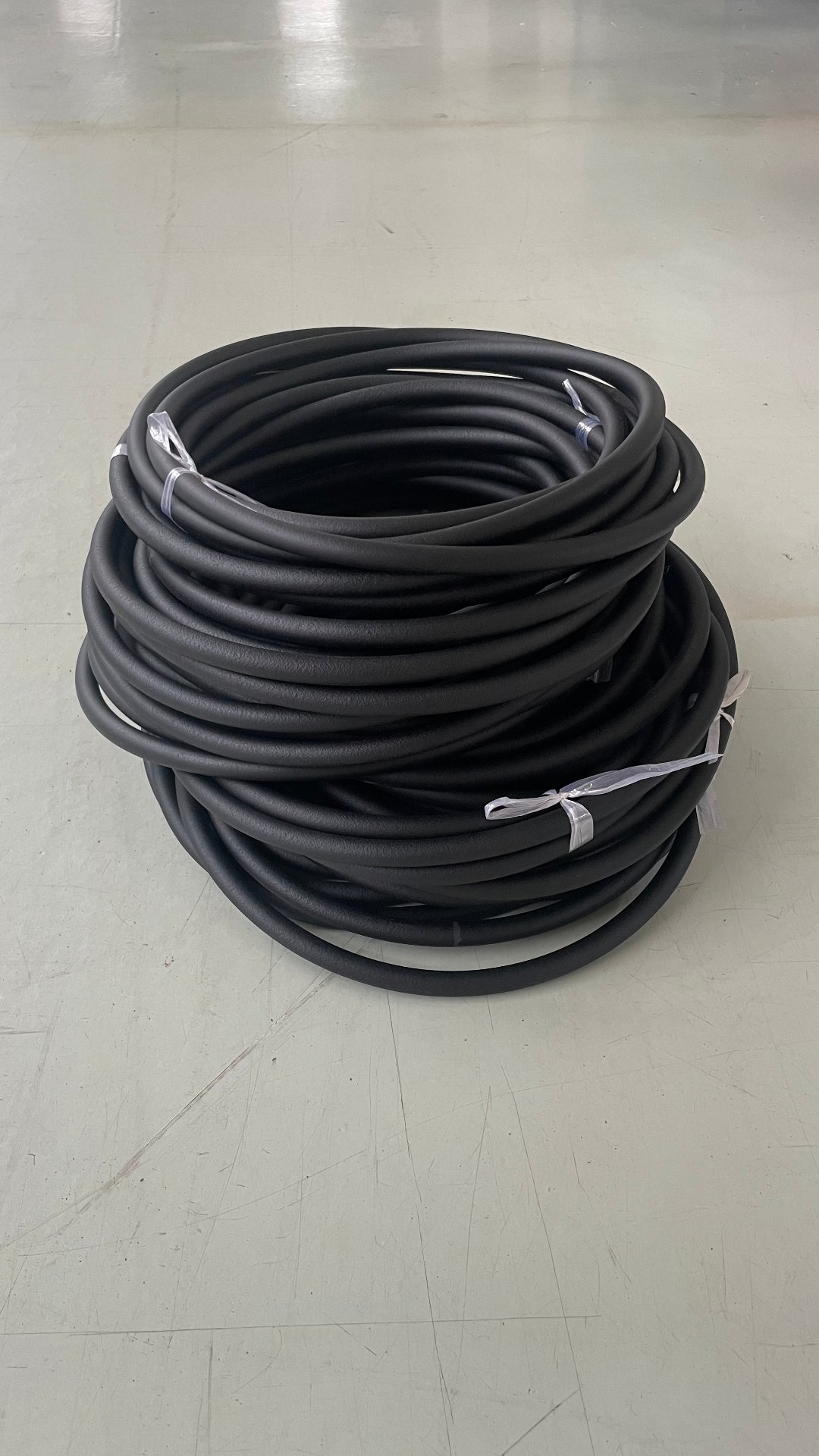

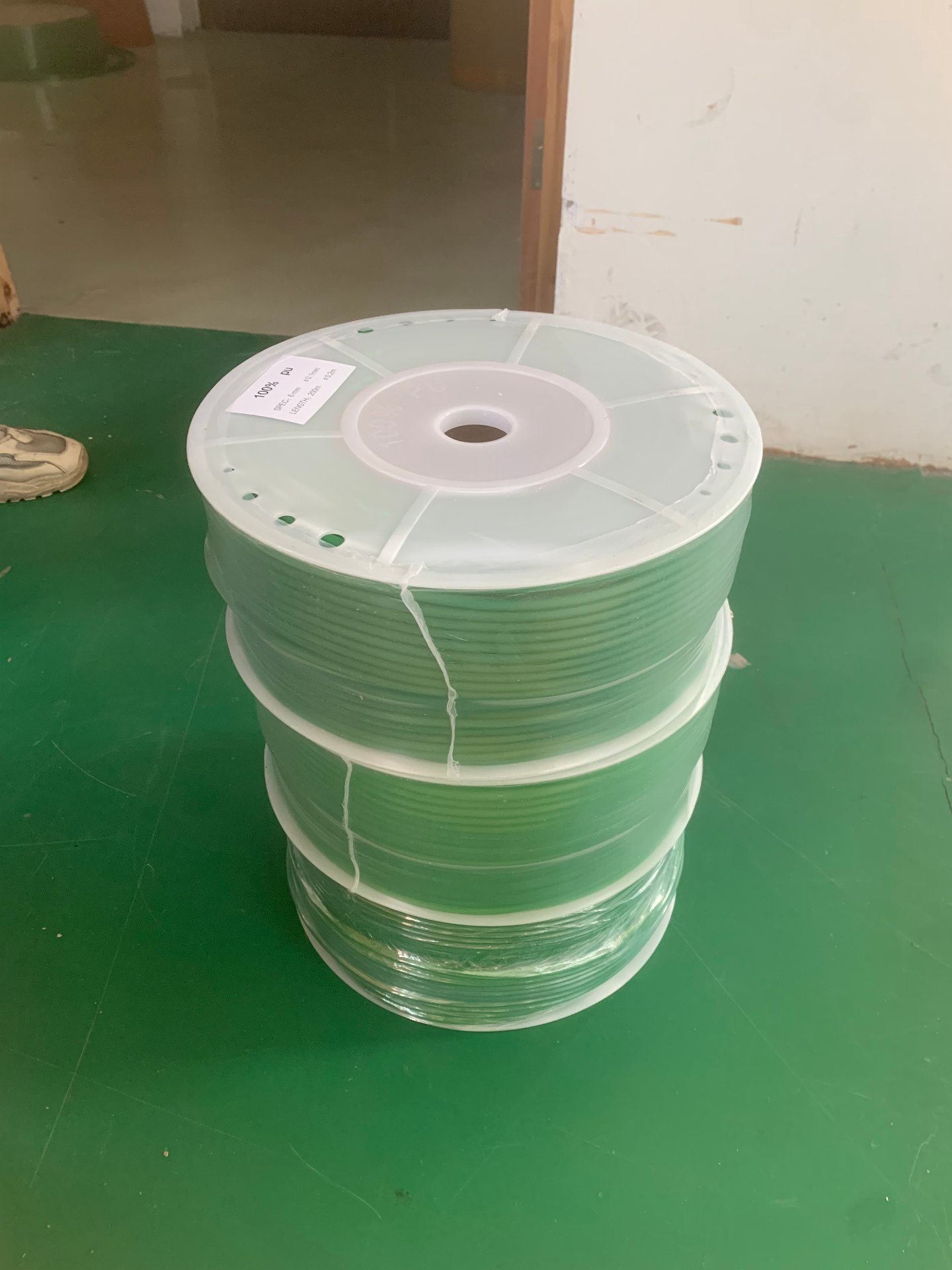

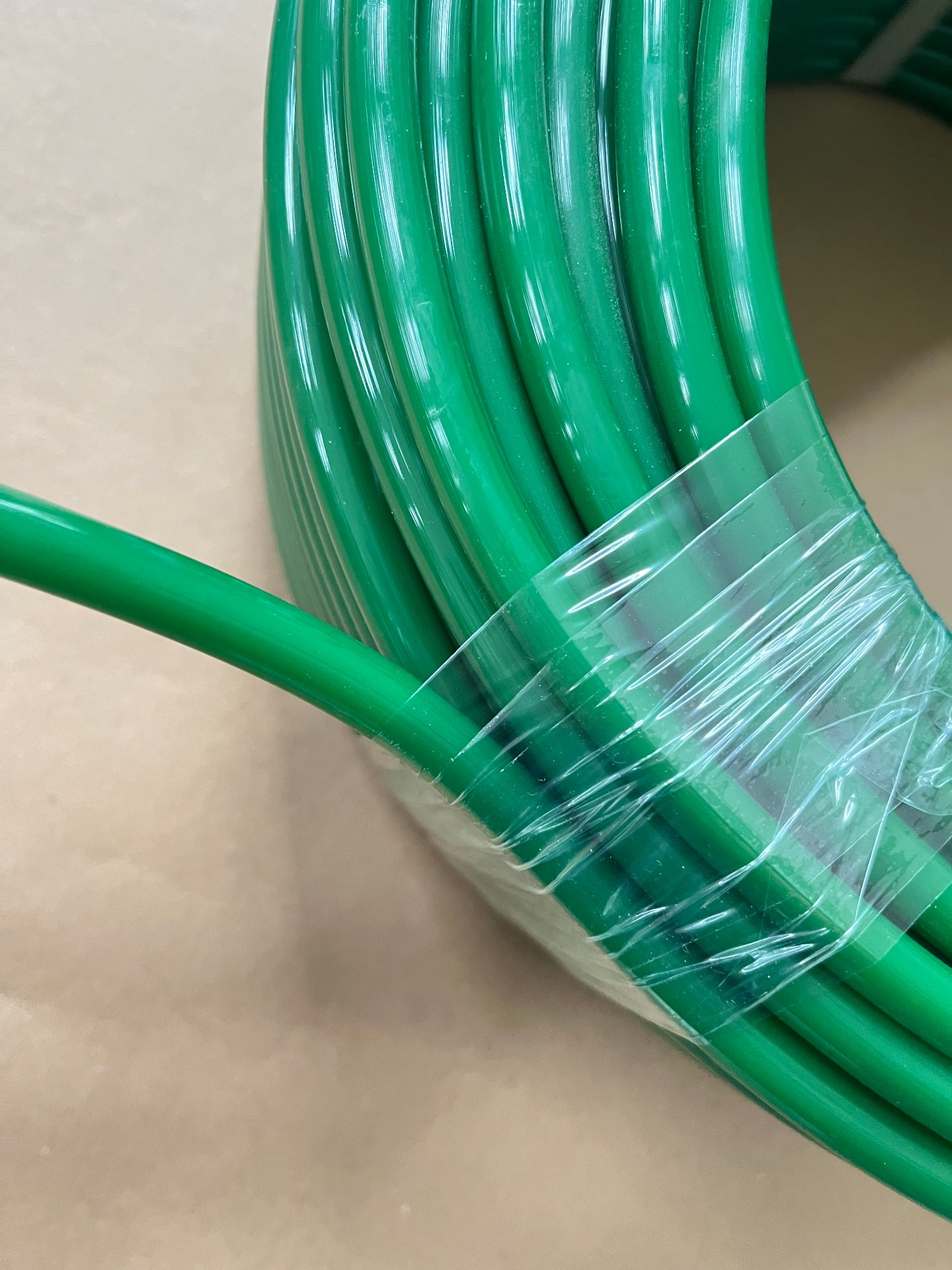

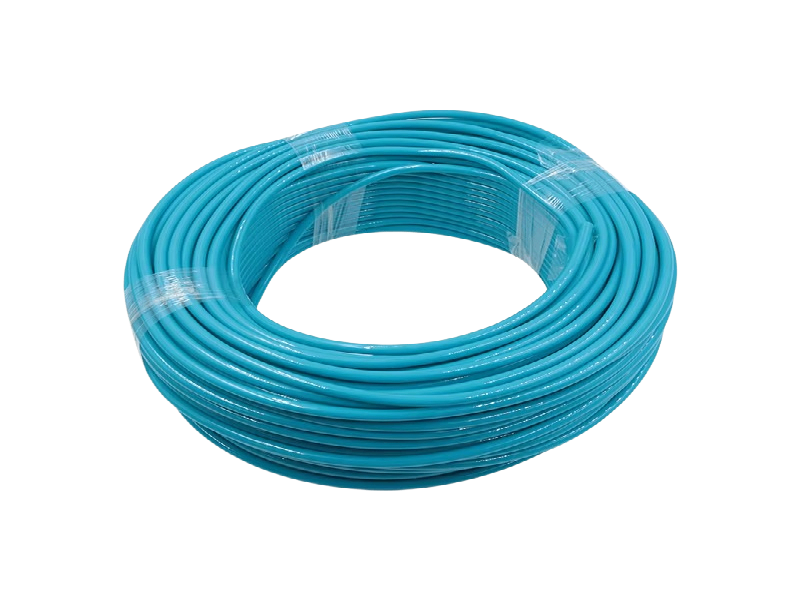

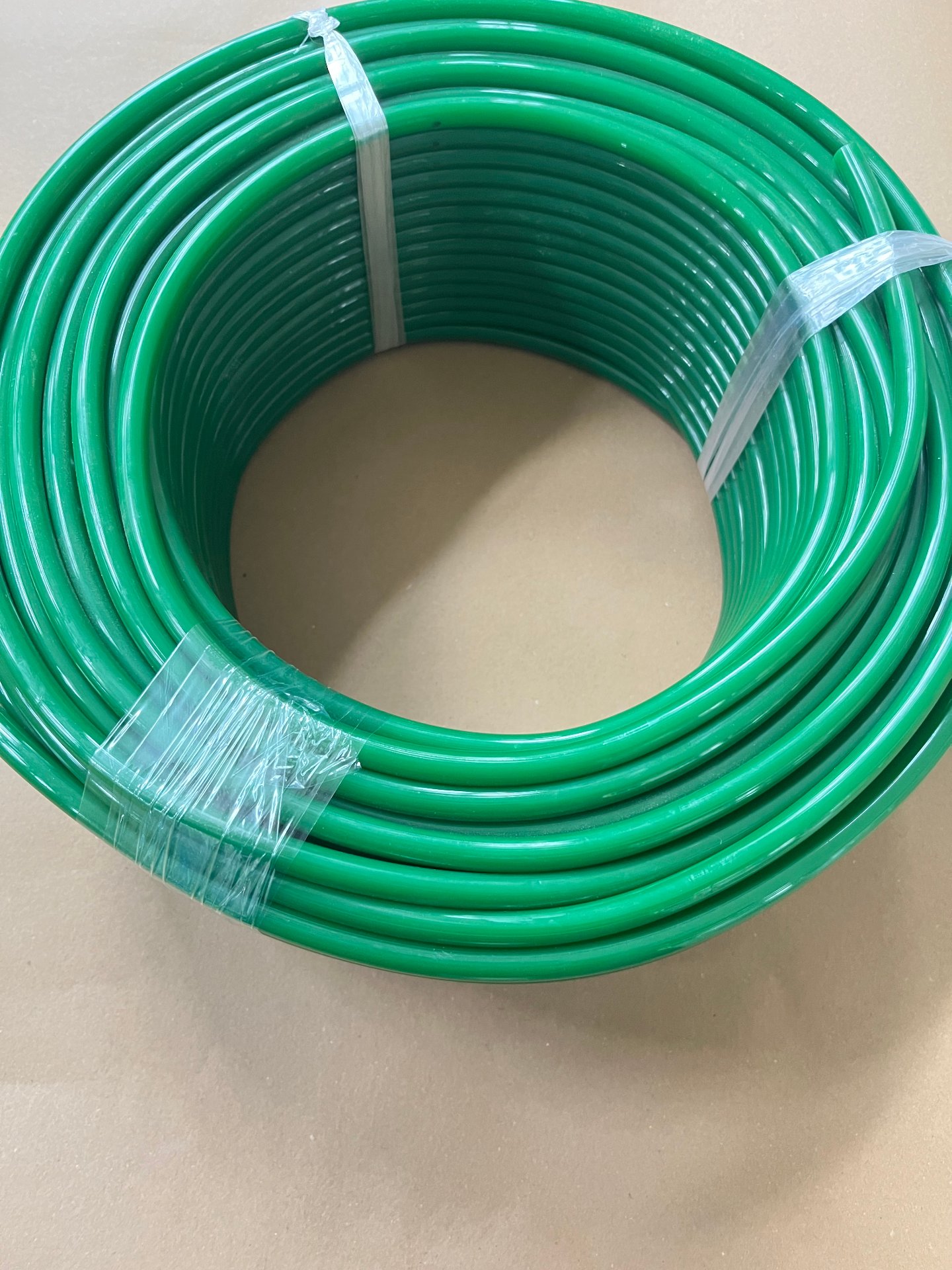

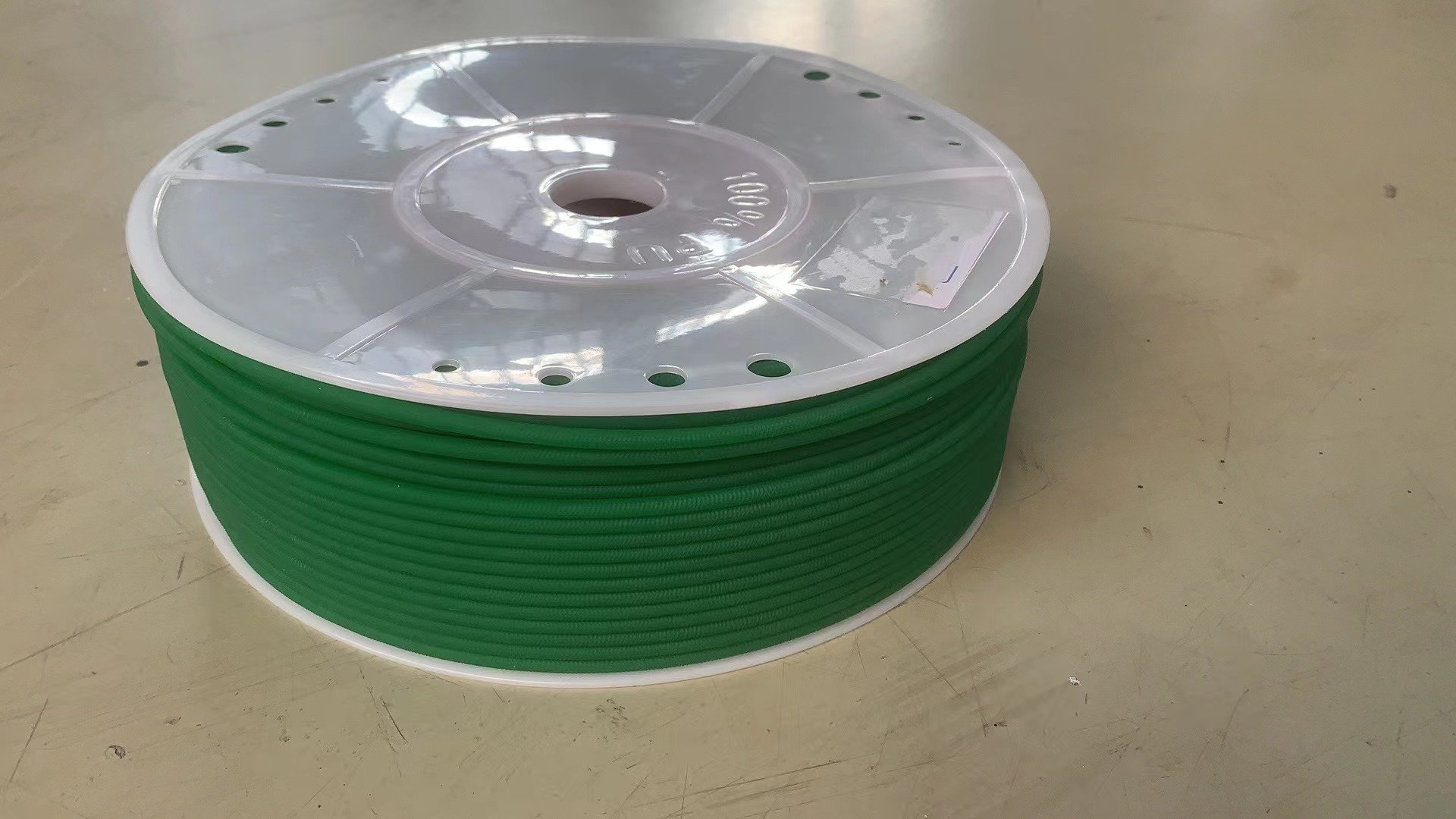

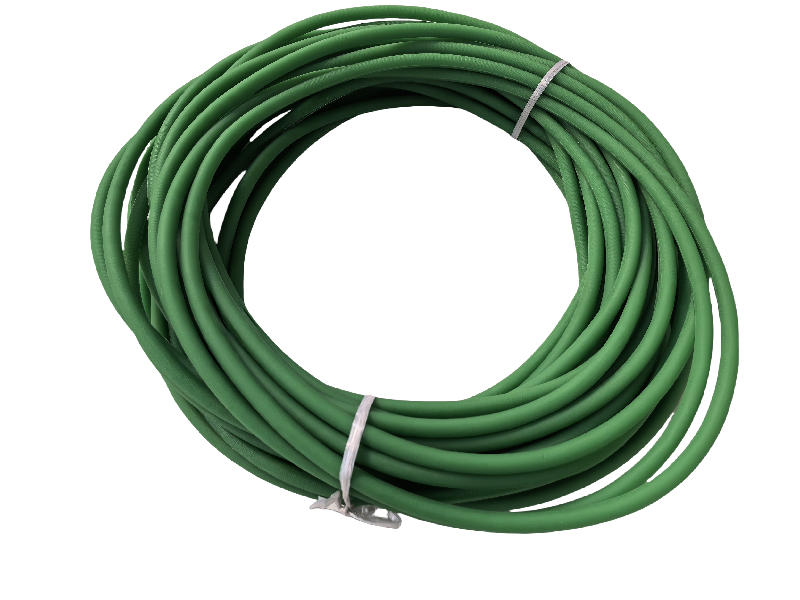

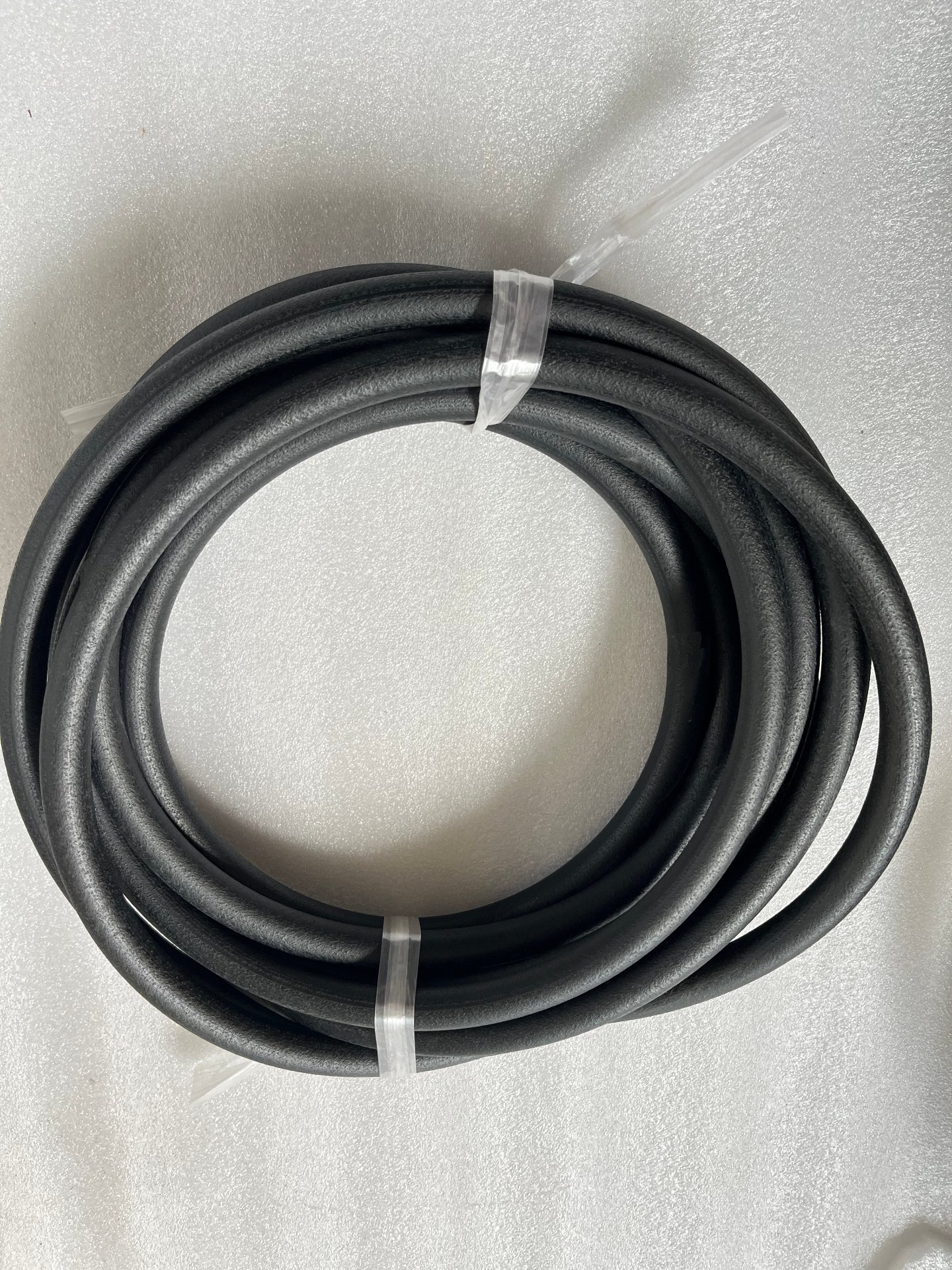

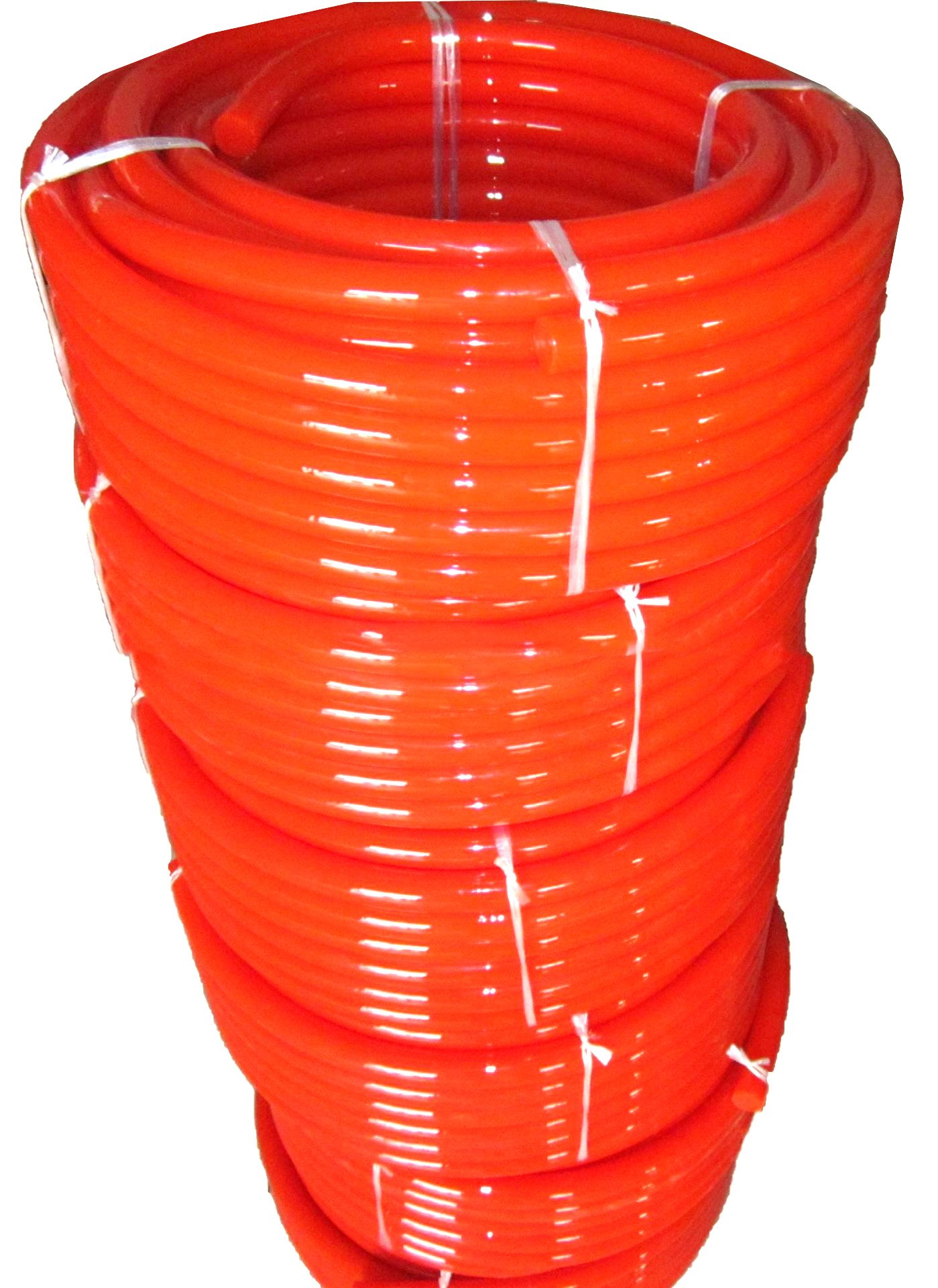

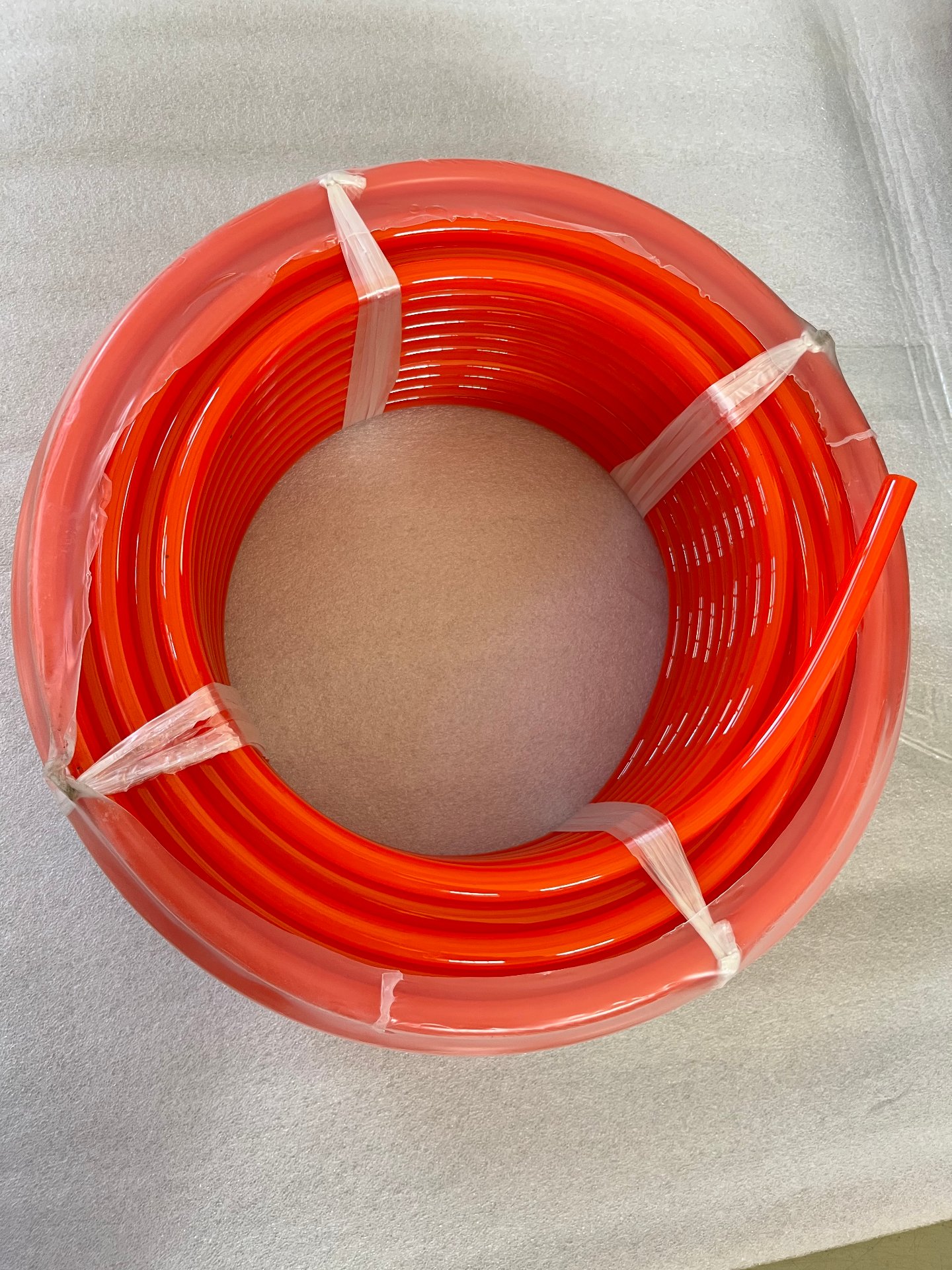

Round Belt

Name: "Round Belt"
Rating: 5 (380 reviews)

SKU: 8957514600

Model: 7811056763

Product Details

Product Specification

Type	PU Round Belt, TPU Round Belt, Polyurethane Round Belt, Solid Round Belt, Hollow Round Belt, Reinforced Round Belt, Polyester Cord Reinforced Round Belt, Aramid Cord Reinforced Round Belt, Kevlar Reinforced Round Belt, Smooth Round Belt,	Model	PU Round Belt, TPU Round Belt, Polyurethane Round Belt, Solid Round Belt, Hollow Round Belt, Reinforced Round Belt, Polyester Cord Reinforced Round Belt, Aramid Cord Reinforced Round Belt, Kevlar Reinforced Round Belt, Smooth Round Belt,
Params	Product Name: Round Belt Diameter: 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 15, 18, 20 mm Minimum Pulley Diameter: 20 mm for 2 mm diameter; 25 mm for 3 mm; 35 mm for 4 mm; 40 mm for 5 mm; 50 mm for 6 mm; 55 mm for 7 mm; 65 mm for 8 mm; 75 mm for 9 mm; 85 mm for 10 mm; 100 mm for 12 mm; 120 mm for 15 mm; 145 mm for 18 mm; 160 mm for 20 mm Maximum Belt Tension: 0.3 kg for 2 mm diameter; 0.7 kg for 3 mm; 1.2 kg for 4 mm; 2.1 kg for 5 mm; 3.2 kg for 6 mm; 4.2 kg for 7 mm; 5.1 kg for 8 mm; 6.8 kg for 9 mm; 7.7 kg for 10 mm; 12.2 kg for 12 mm; 17.8 kg for 15 mm; 25.4 kg for 18 mm; 31.3 kg for 20 mm Roll Length: 400 m for 2–3 mm; 200 m for 4–6 mm; 100 m for 7–9 mm; 50 m for 10 mm; 30 m for 12–20 mm	Material	Polyurethane (PU), Thermoplastic Polyurethane (TPU), Thermoplastic Polyester Elastomer (TPE/TPEE), Reinforced PU/TPU with Polyester Cord

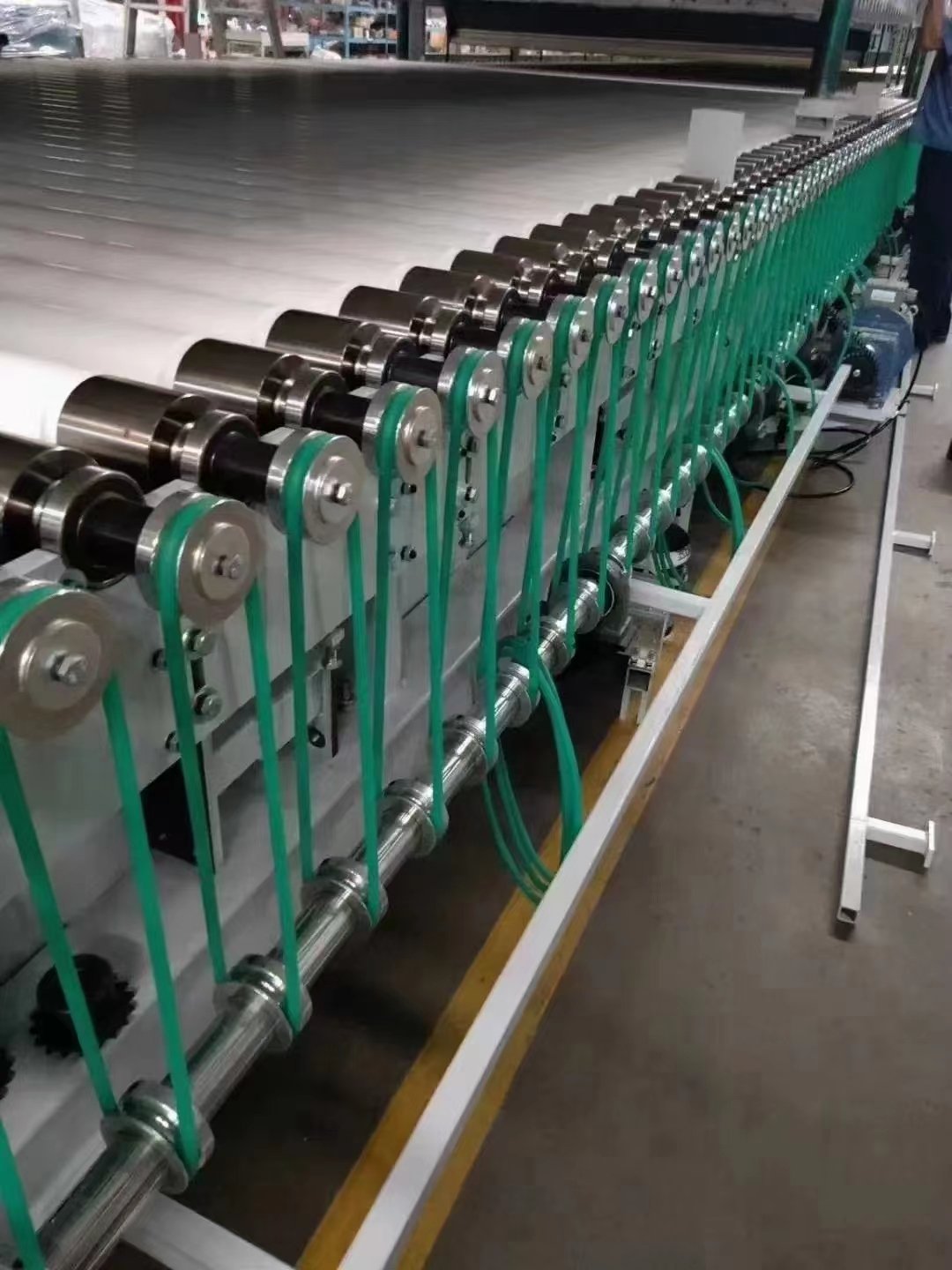

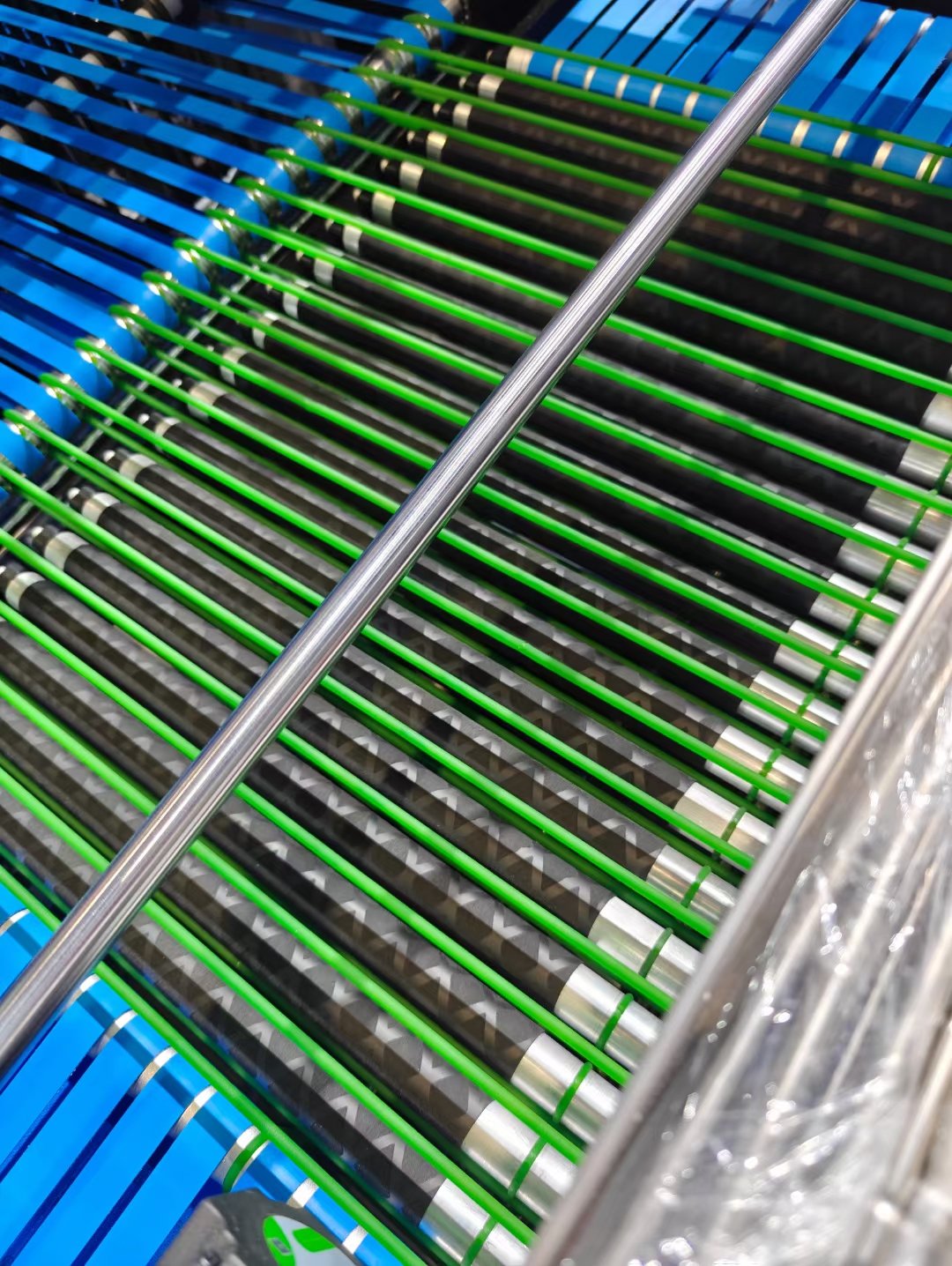

Applicable Industry	Packaging Machinery, Textile Machinery, Printing Machinery, Logistics Conveying, Roller Conveyors, Ceramic and Glass Processing, Food Processing Equipment, Industrial Automation, General Power Transmission

Feature

Flexible Transmission, Wide Diameter Options, Suitable for Small Pulley Systems, Easy Splicing and Installation, Low Noise Operation, Stable Power Transmission, Suitable for High-Speed Conveying, Compact Drive Design, Easy Maintenance, Multiple Size Options

Round Belt
